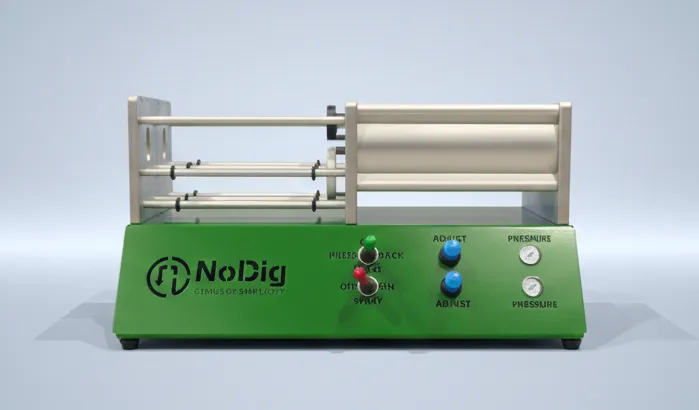

Nodig ProLight2 – epoxy pipe coating machine up to 150mm
Professional epoxy pipe coating, brush coating and spray lining — upgraded with Double Press (two cartridges simultaneously) for a stable flow and faster application, supporting pipes up to 150 mm.
ProLight2 allows you to rehabilitate aged or cracked pipes from the inside without breaking tiles, concrete or asphalt.
Controlled layer application
Engineered for stable and uniform epoxy coating along the pipe wall. Features adjustable spray‑head rotation speed and cartridge pressure.
The dual‑cartridge system delivers up to 40% higher resin flow for faster, more efficient performance.
For professional contractors
Suitable for 1:1, 2:1 and 3:1 cartridges.
ProLight vs ProLight2
Both systems are designed for the same rehabilitation process. The difference is performance and capacity: Double Press and a larger diameter range.
Feature
ProLight
ProLight2
Cartridge system
1 cartridge
2 cartridges (Double Press)
Max pipe diameter
up to 125 mm
up to 150 mm
Material flow
standard
steadier + potential higher flow
Application speed
standard
faster execution (material-dependent)
Drive
pneumatic
pneumatic
Note: ProLight2 is the Double Press version — two cartridges run simultaneously, improving flow stability and overall execution speed, with an extended range up to 150 mm.
Want ProLight2 in your fleet?
Get in touch for detailed specifications, package pricing and available training dates in our Training Center.
Nodig ProLight2 — verified figures from the operation manual
Pipe diameter
DN40 – DN150
up to DN200 with a larger hose
Working length
20 m
up to 30 m with larger hose and preheating
Drive
100% air
compressor, no electricity
Cartridges
1:1, 2:1, 3:1
Double Press — two at a time
Weight
15 kg
Dimensions (L×W×H)
640 × 380 × 380 mm
Operating temperature
-10 °C to +50 °C
frost and condensation free
Methods
Brush + spray
from one machine
Frequently Asked Questions
Everything you need to know about the Nodig ProLight2
Nodig ProLight2 is the Double Press version of the ProLight machine: two epoxy cartridges run simultaneously, giving higher and more stable resin flow and faster application. It covers DN40 to DN150 and weighs 15 kg, against DN32 to DN125 and 6 kg for the single-press ProLight.
ProLight2 covers pipes from DN40 to DN150 as standard, and up to DN200 with a larger hose. For diameters up to DN300 and long pipe runs, NoDig supplies The Pipe Boy instead.
The standard working length is 20 m (65 ft) from the access point. It extends to 30 m (100 ft) with a larger hose and epoxy preheating using an additional heater.
Yes, ProLight2 supports both methods: spray lining (epoxy applied by spraying through a rotating nozzle) and brush coating (epoxy applied by a rotating brush head), depending on the selected accessories and head configuration.
Double Press means the machine drives two epoxy cartridges at the same time instead of one. This keeps resin flow stable through longer application runs and delivers up to 40% higher flow than the single-press ProLight.
No. ProLight2 and the BSE epoxy system are intended for drainage and sewer pipes only. They are not intended or approved for potable or sanitary water systems.
No. ProLight2 is fully air-driven and runs from a compressor, so it can be used where no power supply is available. The operating ambient temperature range is -10 °C to +50 °C, frost and condensation free.
ProLight2 is used for the internal rehabilitation of drainage and sewer pipes and industrial drainage lines in residential, commercial, municipal and industrial buildings, using the trenchless no-dig method - without excavation or demolition.
