Professional machine for epoxy pipe coating, brush coating and spray lining of DN32–DN125 pipes — designed for trenchless rehabilitation without digging.
✓ Trenchless rehabilitation from the inside
✓ Controlled coating thickness and application speed
✓ The machine is fully air-driven, requiring no electricity

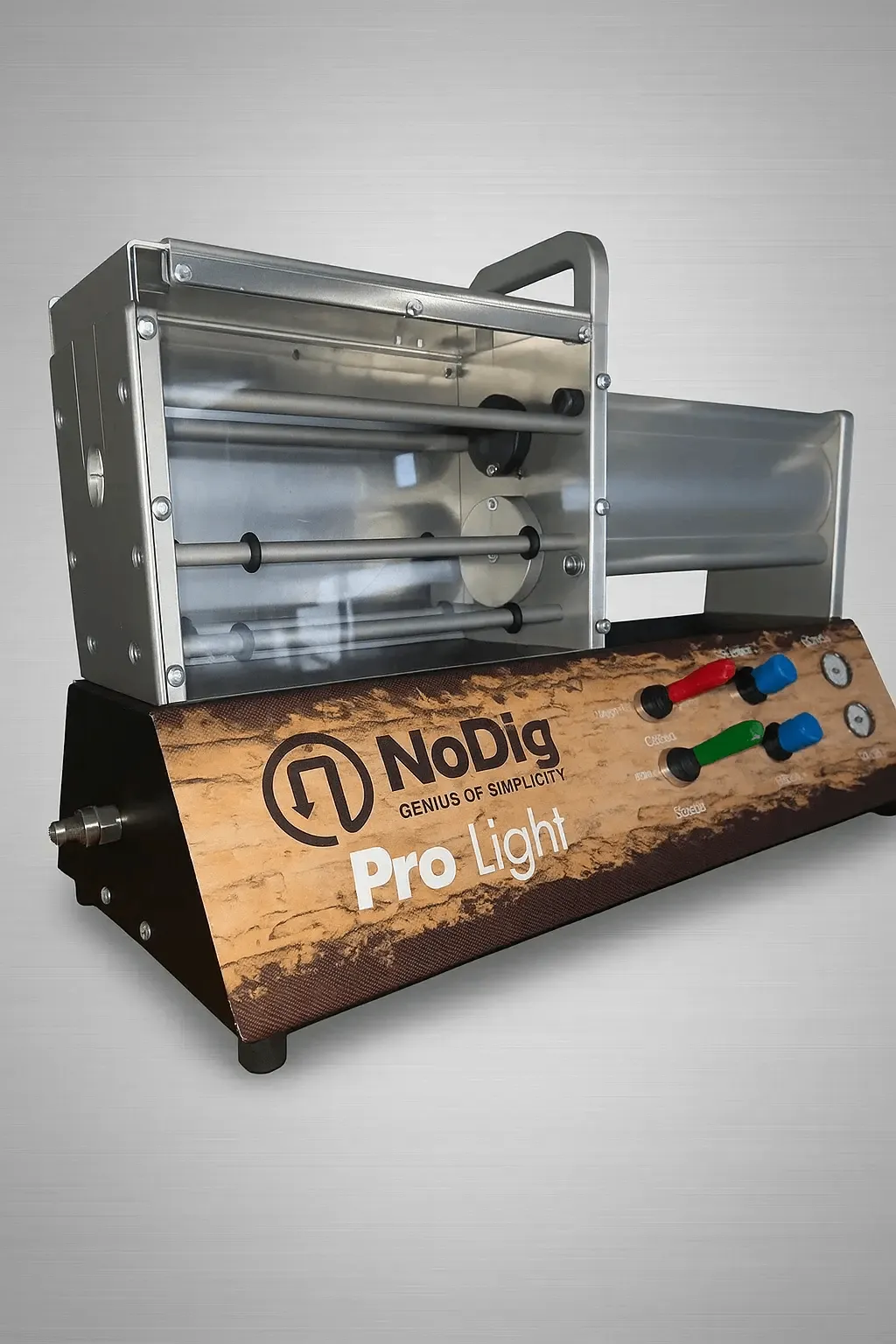

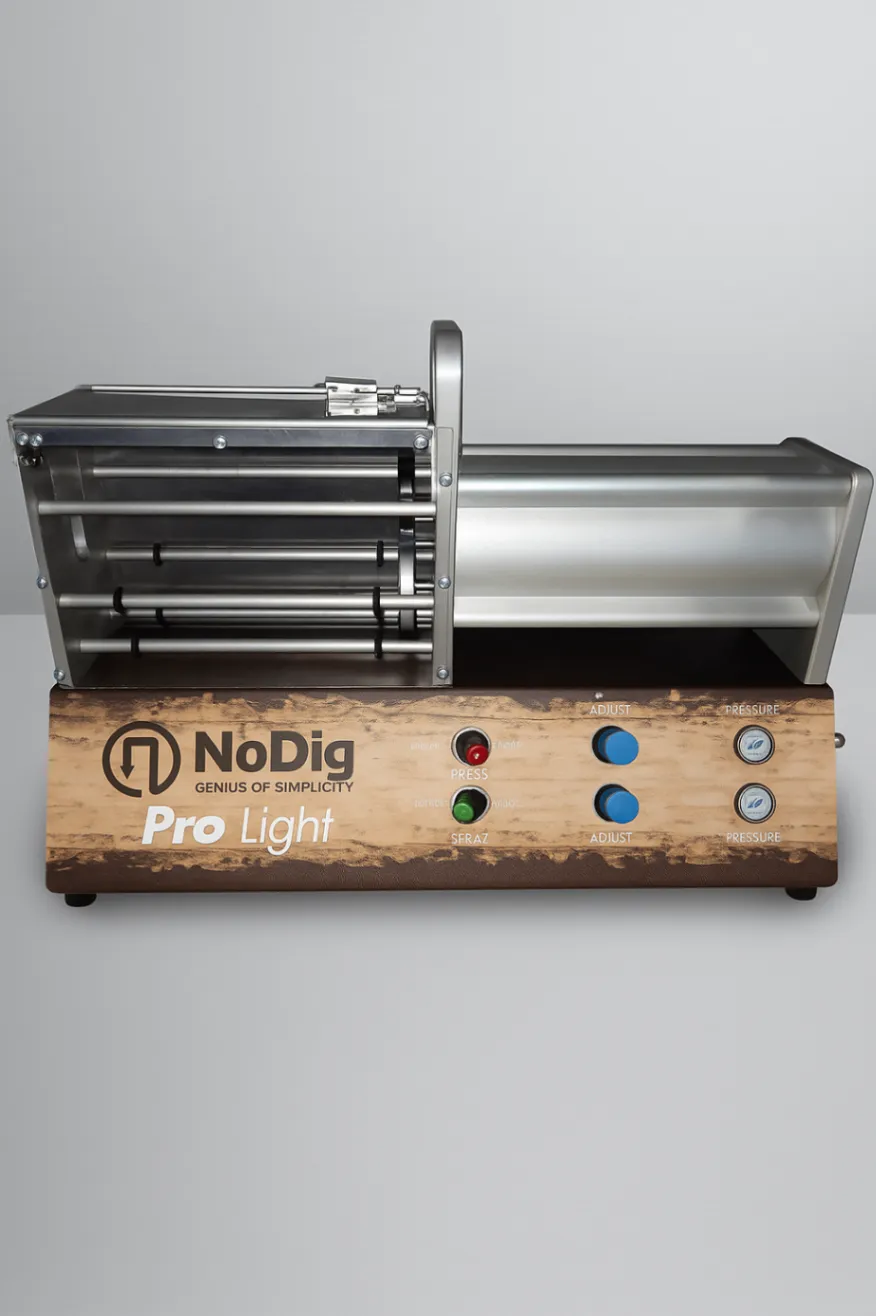

Nodig ProLight — verified figures from the operation manual
Pipe diameter
DN32 – DN125
up to DN150 with a larger hose
Working length
20 m
up to 30 m with larger hose and preheating
Drive
100% air
compressor, no electricity
Cartridges
1:1, 2:1, 3:1
single press
Weight
6 kg
Dimensions (L×W×H)
640 × 280 × 380 mm
Operating temperature
-10 °C to +50 °C
frost and condensation free
Methods
Brush + spray
from one machine
Frequently Asked Questions
Everything you need to know about the Nodig ProLight
Nodig ProLight is a professional spray lining and brush coating machine used for the internal rehabilitation of drainage and sewer pipes by applying a two-component epoxy coating from the inside - a trenchless (no-dig) method that restores pipes without excavation.
Nodig ProLight covers pipes from DN32 to DN125 as standard, and up to DN150 with a larger hose. For diameters up to DN300 and long pipe runs, NoDig supplies The Pipe Boy instead.
The standard working length is 20 m (65 ft) from the access point. It extends to 30 m (100 ft) with a larger hose and epoxy preheating using an additional heater.
ProLight is used with two-component epoxy resins. NoDig supplies BSE (Brush Spray Epoxy), formulated specifically for pneumatic brush and spray application. The machine accepts 1:1, 2:1 and 3:1 cartridges.

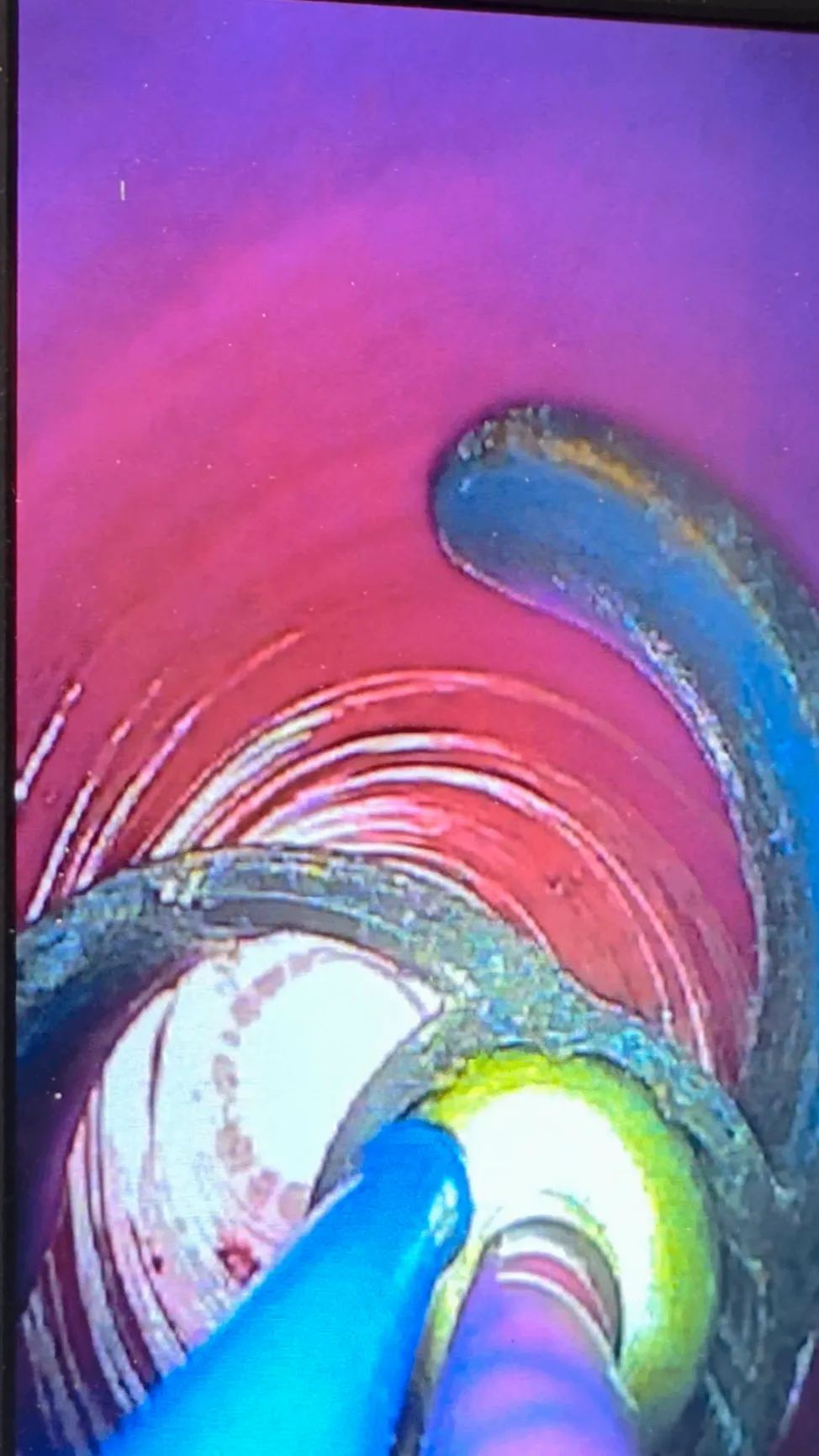

Spray lining (also called spray-in-place pipe, SIPP) applies epoxy by spraying an even coat inside the pipe using a rotating nozzle. Brush coating applies epoxy using a rotating brush head and suits bends, junctions and small diameters. ProLight supports both application methods from a single machine, across DN32–DN125.
No. ProLight and the BSE epoxy system are intended for drainage and sewer pipes only. They are not intended or approved for potable or sanitary water systems.
No. ProLight is fully air-driven and runs from a compressor, so it can be used where no power supply is available. The operating ambient temperature range is -10 °C to +50 °C, frost and condensation free.
ProLight is the single-press machine: one cartridge at a time, DN32 to DN125, 6 kg. ProLight2 is the Double Press version: two cartridges run simultaneously for higher and more stable resin flow, DN40 to DN150, 15 kg. Both support brush coating and spray lining and are fully air-driven.
